Understanding Ball Valves in Piping Systems: A Comprehensive Guide

Ball valves are integral components in piping systems, renowned for their efficiency, durability, and versatility. This guide delves into the intricacies of ball valves, exploring their components, operation, types, advantages, disadvantages, applications, and maintenance practices.

What is a Ball Valve?

A ball valve is a quarter-turn valve that utilizes a spherical disc—the "ball"—to control the flow of fluids through it. When the ball's hole aligns with the flow, the valve is open; when rotated 90 degrees, the flow is blocked. This simple mechanism allows for quick and reliable shut-off, making ball valves a preferred choice in various industries.

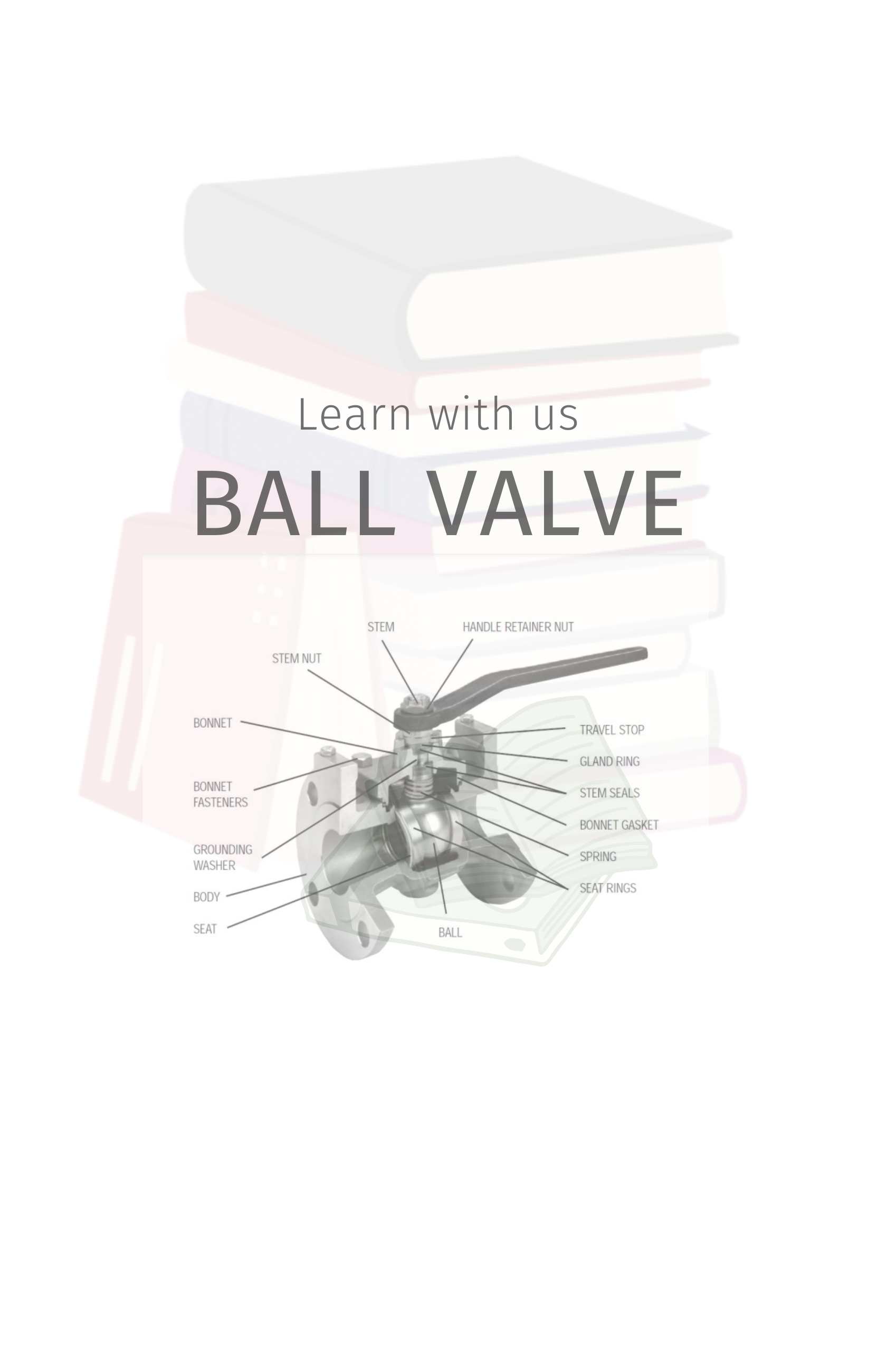

Key Components of a Ball Valve

Understanding the anatomy of a ball valve is crucial for proper selection and maintenance:

Body: The main structure housing all internal components. It connects to the piping system and can be constructed in one, two, or three pieces.
Ball: A hollow, perforated sphere that controls flow. Its rotation opens or closes the valve.
Stem: Connects the ball to the actuator or handle, transmitting motion to rotate the ball.
Seats: Provide a seal between the ball and the body, preventing leakage. Common materials include PTFE for its chemical resistance and low friction.
Seals and O-Rings: Prevent leakage around the stem and other potential leak paths.
Actuator or Handle: Manual handles or automated actuators (electric, pneumatic, or hydraulic) control the valve's position.
End Connections: Determine how the valve connects to the piping system, including threaded, flanged, or welded ends.

How Ball Valves Operate

Ball valves function through a straightforward mechanism:

Open Position: The ball's hole aligns with the pipeline, allowing fluid to pass through.
Closed Position: A 90-degree rotation of the ball blocks the flow, as the solid side of the ball faces the flow path.

This quarter-turn operation enables rapid opening and closing, essential in emergency shut-off scenarios.

Types of Ball Valves

Ball valves come in various designs to suit specific applications:

Full Port (Full Bore): The ball's hole matches the pipeline diameter, minimizing pressure drop. Ideal for applications requiring unrestricted flow, such as pigging operations.
Reduced Port (Standard Bore): The ball's hole is smaller than the pipeline, causing a slight pressure drop. These valves are more compact and cost-effective, suitable for general applications.
Floating Ball Valve: The ball is suspended in the fluid and held in place by two elastomeric seats. Suitable for low to medium pressure applications.
Trunnion Mounted Ball Valve: The ball is anchored by bearings, reducing the load on the seats and allowing for operation in high-pressure systems.
One-Piece, Two-Piece, and Three-Piece Valves: These refer to the construction of the valve body. One-piece valves are compact and cost-effective but non-serviceable. Two-piece valves can be disassembled for maintenance. Three-piece valves allow for easy cleaning and repairs without removing the valve from the pipeline.

Advantages of Ball Valves

Ball valves offer several benefits:

Quick Operation: A simple quarter-turn opens or closes the valve, facilitating rapid response.
Tight Sealing: The design ensures minimal leakage, even after prolonged use.
Durability: Robust construction materials enable long service life with minimal maintenance.
Versatility: Suitable for a wide range of applications, including high-pressure and high-temperature systems.
Low Pressure Drop: Full port designs allow for minimal flow resistance.

Disadvantages of Ball Valves

Despite their advantages, ball valves have limitations:

Not Ideal for Throttling: Partially open ball valves can cause seat erosion and are not suitable for precise flow control.
Potential for Cavitation: In high-pressure drop scenarios, vapor bubbles can form and collapse, damaging the valve.
Size and Weight: Larger valves can be heavy and require more space, posing installation challenges.
Cost: High-quality materials and designs, especially for trunnion-mounted valves, can be expensive.

Applications of Ball Valves

Ball valves are utilized across various industries:

Oil and Gas: Used in upstream, midstream, and downstream operations for flow control and isolation.
Chemical and Petrochemical: Handle corrosive fluids and gases safely.
Water and Wastewater Treatment: Control water flow in treatment plants and distribution systems.
HVAC Systems: Regulate heating and cooling fluids.
Pharmaceutical and Food Processing: Maintain hygienic conditions with easy-to-clean designs.

Maintenance of Ball Valves

Regular maintenance ensures optimal performance and longevity:

Inspection: Periodically check for leaks, corrosion, and wear.
Lubrication: Apply appropriate lubricants to moving parts to reduce friction and wear.
Cleaning: Remove debris and buildup that could impede operation.
Testing: Conduct pressure and leak tests to verify integrity.
Repairs: Replace worn or damaged components promptly to prevent failures.

Conclusion

Ball valves are essential components in modern piping systems, offering reliable and efficient flow control. Understanding their design, operation, and maintenance is crucial for selecting the right valve for your application and ensuring its long-term performance.
